Available Models

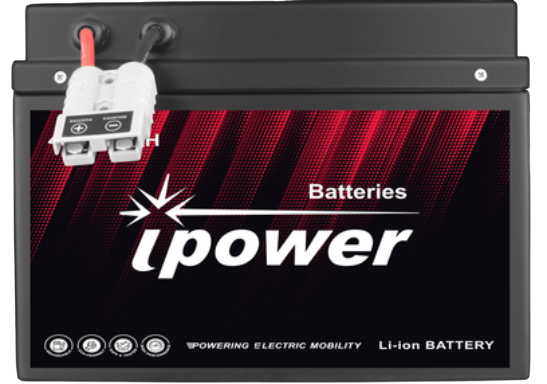

RUGPRO-48V24AH

LFP Prismatic Cell – 48V 24Ah 38S 100A- BMS in single module (Integrated) 48V 24Ah Battery Pack – Built using high-performance LFP Prismatic Cells (48V, 24Ah), designed for reliable energy storage and long cycle life.
S/N Parameters Values
1Battery ModelRugpro-48V24
2Cell Capacity6.2Ah
3Type of CellLFP
4Rated Capacity24Ah
5Nominal Voltage3.2V
6Voltage Range40±1V–54.0V
7Total Energy1152kWh
8Configuration15S4P
9Standard Charging Current5A
10Max. Charge Current6A
11Maximum Continuous Discharge Current24A
12Peak Discharge Current (for 5 sec)30A
13Cycle Life1000 Cycles
14Operating Temperature RangeCharging: 0°C to +55°C / Discharging: -20°C to +60°C
15Recommended Storage Temp Range+15°C to +35°C
16IP ClassIP55
17Weight12±1kg
18Dimension (L*W*H)±3mm187*233.4*255
19Battery CasingMS Sheet Metal
20ConnectorSB120/SB50
21Additional FeaturesBluetooth Connectivity

RUGPRO-48V45AH

LFP Prismatic Cell – 48V 45Ah

38S 100A- BMS in single module (Integrated)

48V 45Ah Battery Pack – Built using high-performance LFP Prismatic Cells (48V 45Ah), designed for reliable energy storage and long cycle life.

S/N Parameters Values
1Battery ModelRugpro-48V45
2Cell Capacity3.7V, 15Ah
3Type of CellCylindrical LFP 32140
4Nominal Capacity45Ah±1
5Nominal Voltage51.8V
6Voltage Range36±1V–58.8V
7Total Energy2.33kWh
8Configuration14S3P
9Standard Charging Current0.3C
10Max. Charge Current0.3C
11Maximum Continuous Discharge Current1C i.e. 48A
12Peak Discharge Current (for 5 sec)2C i.e. 60A
13Cycle Life1000–1200 Cycles
14Operating Temperature RangeCharging: 0°C to +55°C / Discharging: -20°C to +60°C
15Recommended Storage Temp Range+15°C to +35°C
16IP ClassIP67
17Weight17±1kg
18Dimension (L*W*H)±3mm235*179*295
19Battery CasingAluminium & AB6 TOP
20IOT (OPTIONAL)GPS/GPRS, Data Logging, Audio Visual Warning, Bluetooth Connectivity
21ConnectorSB75/2+4 PIN ICIL

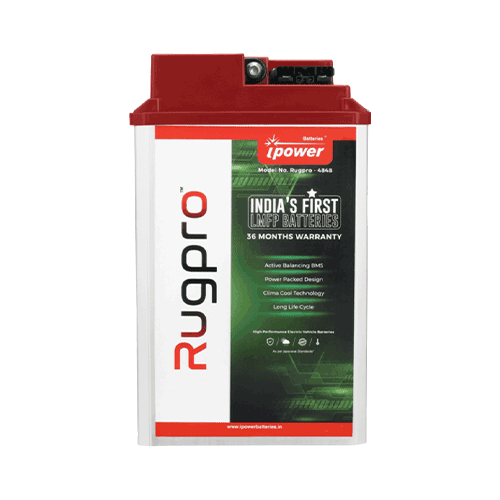

LFP51.2V30AH

LFP Prismatic Cell – 51.2V 30 Ah

38S 100A- BMS in single module (Integrated)

51.2V 30Ah Battery Pack – Built using high-performance LFP Prismatic Cells (51.2V, 30Ah), designed for reliable energy storage and long cycle life.

S/N Parameters Values
1Battery ModelLFP51.2V30Ah
2Cell Capacity6.2V, 15Ah
3Type of CellCylindrical LFP 32130/33140
4Nominal Capacity30Ah±1
5Nominal Voltage51.2V
6Voltage Range42±1V–58.4V
7Total Energy1.440kWh
8Configuration16S5P/16S2P
9Standard Charging Current5A
10Max. Charge Current6A
11Maximum Continuous Discharge Current0.7C-0.8C
12Peak Discharge Current (for 5 sec)1.2C
13Cycle Life1000–1200 Cycles
14Operating Temperature RangeCharging: 0°C to +55°C / Discharging: -20°C to +65°C
15Recommended Storage Temp Range+15°C to +35°C
16IP ClassIP65
17Weight16±1kg
18Dimension (L*W*H)±3mm187*233.4*255
19Battery CasingMS Sheet Metal
20Additional FeaturesBluetooth Connectivity

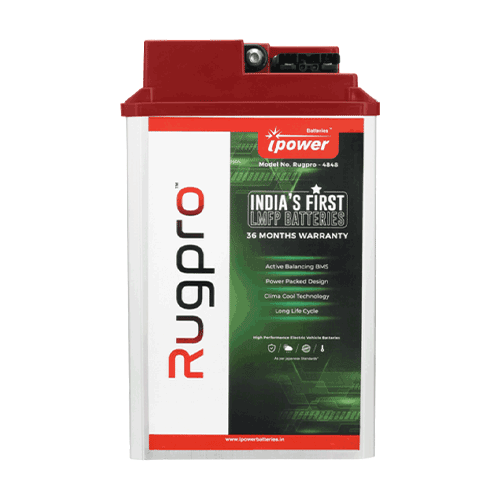

LFP51.2V45AH

LFP Prismatic Cell – 51.2V 45 Ah

38S 100A- BMS in single module (Integrated)

120V 100Ah Battery Pack – Built using high-performance LFP Prismatic Cells (51.2V, 45Ah), designed for reliable energy storage and long cycle life.

S/N Parameters Values
1Battery ModelLFP51.2V45Ah
2Cell Capacity3.2V, 15Ah
3Type of CellCylindrical LFP 32135
4Nominal Capacity45Ah±1
5Nominal Voltage51.2V
6Voltage Range41±1V–58.4V
7Total Energy2.304kWh
8Configuration16S3P
9Standard Charging Current8A
10Max. Charge Current10A
11Maximum Continuous Discharge Current0.8C
12Peak Discharge Current (for 5 sec)1.2C
13Cycle Life1000–1200 Cycles
14Operating Temperature RangeCharging: 0°C to +55°C / Discharging: -20°C to +65°C
15Recommended Storage Temp Range+15°C to +35°C
16IP ClassIP67
17Weight19±1kg
18Dimension (L*W*H)±3mm230*163*350
19Battery CasingMetal
20Additional FeaturesBluetooth Connectivity, CAN/RS185
21IOT (OPTIONAL)IOT Enable

LFP Battery
