Rugpro LMFP Batteries for Electric Vehicles
Rugpro LMFP batteries are designed to meet the growing demands of electric two-wheelers (E2W) and electric three-wheelers (E3W). Leveraging advanced Lithium Manganese Iron Phosphate (LMFP) technology, these batteries offer superior safety, a longer lifespan, and higher energy density than traditional lithium-ion batteries.
Whether you’re looking to power electric scooters or e-rickshaws, Rugpro LMFP batteries deliver the performance, efficiency, and reliability needed for smooth, long-lasting rides.
Why Choose LMFP Batteries for E2W and E3W?
Enhances Safety
LMFP batteries are known for their thermal stability, reducing the risk of overheating and fires. This makes them an excellent choice for electric vehicle applications where safety is paramount
Longer Lifespan
These batteries can endure more charge cycles than standard lithium-ion batteries, providing a longer operational life and lower replacement costs.
High Energy Density
LMFP technology provides higher energy density, ensuring better range and performance for electric two-wheelers and three-wheelers. This means fewer charging stops and more mileage per charge
Sustainability
LMFP batteries are also more eco-friendly, as they contain no toxic metals like cobalt, reducing the environmental impact of battery production
LMFP battery technology is considered the future of electric vehicle batteries. With ongoing advancements, LMFP batteries are expected to play a major role in revolutionizing the EV industry, providing affordable, high-performance energy solutions. By choosing Rugpro LMFP batteries, you’re not just investing in high-performance batteries, but also contributing to a cleaner, greener future.

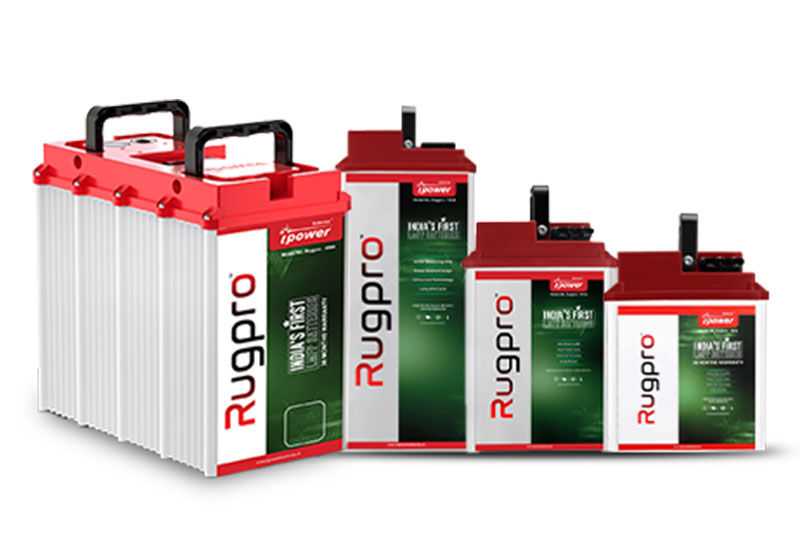

Available Models

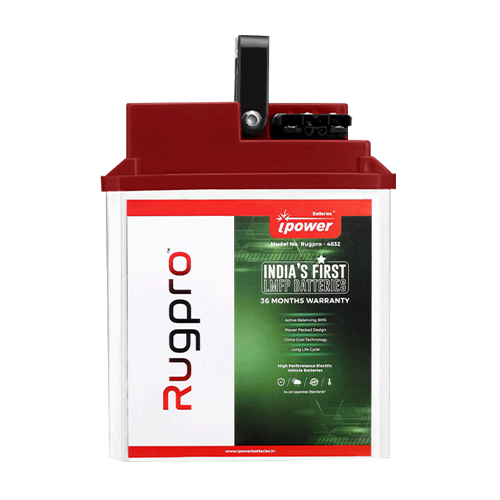

RUGPRO4830
LFP Prismatic Cell – 3.7V 30Ah
38S 100A- BMS in single module (Integrated)
3.7V 30Ah Battery Pack – Built using high-performance LFP Prismatic Cells (3.7V, 30Ah), designed for reliable energy storage and long cycle life.
| S/N | Parameters | Values |
|---|---|---|
| 1 | Battery Model | Rugpro4830 |
| 2 | Cell Capacity | 3.7V, 15Ah |
| 3 | Type of Cell | Cylindrical LMFP |
| 4 | Nominal Capacity | 30Ah |
| 5 | Nominal Voltage | 48.1V |
| 6 | Voltage Range | 35 ±1V -54.6V |
| 7 | Total Energy | 1.443kWh |
| 8 | Configuration | 13S2P |
| 9 | Standard Charging Current | 0.3C |
| 10 | Max. Charge Current | 0.5C, where 0°C < T ≤ 10°C |
| 11 | Maximum Continuous Discharge Current | 1C i.e. 30A |
| 12 | Peak Discharge Current (for 2 sec) | 2C i.e. ~60A |
| 13 | Cycle Life | 1000-1200 Cycles (depends upon DOD) |
| 14 | Operating Temperature Range | Charging: 0° to +60°C / Discharging: -20° to +65°C |
| 15 | Recommended Storage Temp Range | +15° to +35°C |
| 16 | Weight | 12±1kg (approx.) |
| 17 | Dimension (l*b*h)±3mm | 235*185*188mm |
| 18 | Battery Casing | Metal |
| 19 | Communication | CAN, RS485, UART |
| 20 | Protections | Over Voltage Protection, Undervoltage Protection, Over Temperature Protection, Short Circuit Protection, Over Charge/Regeneration Protection, Over Discharge Protection |

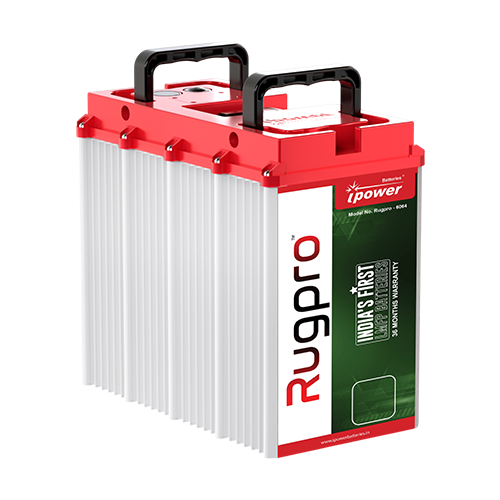

RUGPRO4860
LFP Prismatic Cell – 3.7V 60Ah
38S 100A- BMS in single module (Integrated)
3.7V 60Ah Battery Pack – Built using high-performance LFP Prismatic Cells (3.7V, 60Ah), designed for reliable energy storage and long cycle life.
| S/N | Parameters | Values |
|---|---|---|
| 1 | Battery Model | Rugpro-4860 |
| 2 | Cell Capacity | 3.7V, 15Ah |
| 3 | Type of Cell | Cylindrical LMFP |
| 4 | Nominal Capacity | 60Ah |
| 5 | Nominal Voltage | 51.8V |
| 6 | Voltage Range | 38 ±1V -58.8V |
| 7 | Total Energy | 3.108kWh |
| 8 | Configuration | 14S4P |
| 9 | Standard Charging Current | 0.3C |
| 10 | Max. Charge Current | 1C for T >10ºC, 0.2C for T, where 0ºC<T≤10ºC |
| 11 | Maximum Continuous Discharge Current | 1C i.e. 60A |
| 12 | Peak Discharge Current (for 2 sec) | 85A |
| 13 | Cycle Life | 1000-1200 Cycles (depends upon DOD) |
| 14 | Operating Temperature Range | Charging: 0º to +60ºC / Discharging: -20º to +60ºC |
| 15 | Recommended Storage Temp Range | +15º to +35ºC |
| 16 | IP Class | IP67 |
| 17 | Weight | 23±1 kg (approx.) |
| 18 | Dimension (l*b*h)±3mm | 230*170*325mm |
| 19 | Battery Casing | Aluminium |
| 20 | IOT (OPTIONAL) | GPS/GPRS |
| 21 | Additional Features | Data Logging, Audio Visual Warning, Bluetooth Connectivity |
| 22 | Protections | Over Voltage Protection, Undervoltage Protection, Over Temperature Protection, Short Circuit Protection, Over Charge/Regeneration Protection, Over Discharge Protection, Cell Balancing (String level@100mA) |

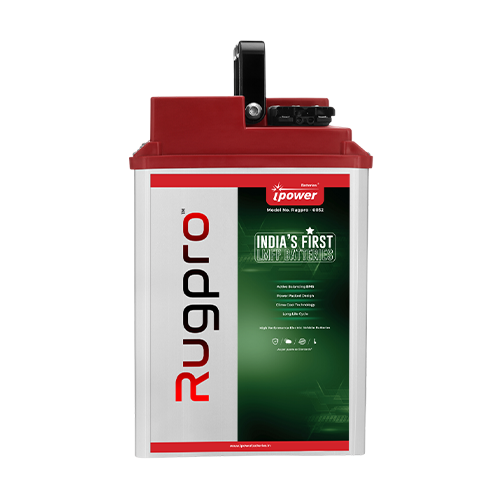

RUGPRO6045
LFP Prismatic Cell – 3.7V 45Ah
38S 100A- BMS in single module (Integrated)
3.7V 45Ah Battery Pack – Built using high-performance LFP Prismatic Cells (3.7V, 45Ah), designed for reliable energy storage and long cycle life.
| S/N | Parameters | Values |
|---|---|---|
| 1 | Battery Model | Rugpro 6045 |
| 2 | Cell Capacity | 3.7V, 15Ah |
| 3 | Type of Cell | Cylindrical LMFP |
| 4 | Nominal Capacity | 45Ah |
| 5 | Nominal Voltage | 59.2V |
| 6 | Voltage Range | 43 ±1V - 67.2V |
| 7 | Total Energy | 2.664kWh |
| 8 | Configuration | 16S3P |
| 9 | Standard Charging Current | 0.3C |
| 10 | Max. Charge Current | 1C for T >10ºC, 0.2C for T where 0ºC<T≤10ºC |
| 11 | Maximum Continuous Discharge Current | 1C i.e. 45A |
| 12 | Peak Discharge Current (for 2 sec) | 2C i.e. ~90A |
| 13 | Cycle Life | 1000-1200 Cycles (depends on DOD) |
| 14 | Operating Temperature Range | Charging: 0º to +60ºC / Discharging: -20º to +60ºC |
| 15 | Recommended Storage Temp Range | +15º to +35ºC |
| 16 | IP Class | IP67 |
| 17 | Weight | 18±1 kg (approx.) |
| 18 | Dimension (l*b*h)±3mm | 235*173*330mm |
| 19 | Battery Casing | Aluminium |
| 20 | IOT (OPTIONAL) | GPS/GPRS |
| 21 | Additional Features | Data Logging, Audio Visual Warning, Bluetooth Connectivity |
| 22 | Protections | Over Voltage Protection, Undervoltage Protection, Over Temperature Protection, Short Circuit Protection, Over Charge/Regeneration Protection, Over Discharge Protection |

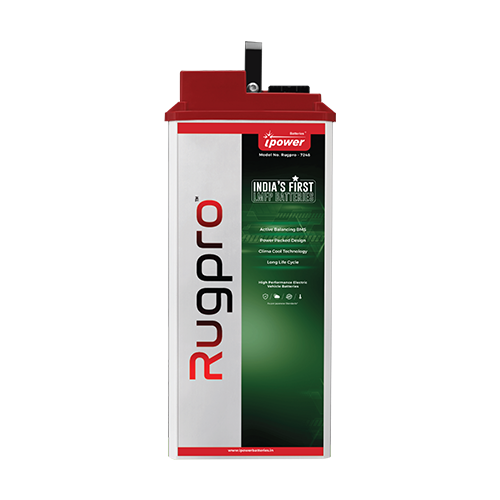

RUGPRO7245
LFP Prismatic Cell – 3.7V 45 Ah
38S 100A- BMS in single module (Integrated)
3.7V 45Ah Battery Pack – Built using high-performance LFP Prismatic Cells (3.7V, 45Ah), designed for reliable energy storage and long cycle life.
| S/N | Parameters | Values |
|---|---|---|
| 1 | Battery Model | Rugpro 7245 |
| 2 | Cell Capacity | 3.7V, 15Ah |
| 3 | Type of Cell | Cylindrical LMFP |
| 4 | Nominal Capacity | 45Ah |
| 5 | Nominal Voltage | 72V |
| 6 | Voltage Range | 55 ±1V - 84V |
| 7 | Total Energy | 3.330kWh |
| 8 | Configuration | 20S3P |
| 9 | Standard Charging Current | 0.3C |
| 10 | Max. Charge Current | 1C for T >10ºC, 0.2C for T where 0ºC<T≤10ºC |
| 11 | Maximum Continuous Discharge Current | 1C i.e. 45A |
| 12 | Peak Discharge Current (for 2 sec) | 2C i.e. ~90A |
| 13 | Cycle Life | 1000-1200 Cycles (depends on DOD) |
| 14 | Operating Temperature Range | Charging: 0º to +55ºC / Discharging: -20º to +60ºC |
| 15 | Recommended Storage Temp Range | +15º to +35ºC |
| 16 | Weight | 21±1 KG (approx.) |
| 17 | Dimension (l*b*h)±3mm | 400*260*158 |
| 18 | Battery Casing | Metal |
| 19 | IOT (OPTIONAL) | GPS/GPRS |
| 20 | Additional Features | Data Logging, Audio Visual Warning, Bluetooth Connectivity |
| 21 | Protections | Over Voltage Protection, Undervoltage Protection, Over Temperature Protection, Short Circuit Protection, Over Charge/Regeneration Protection, Over Discharge Protection |
